ABB

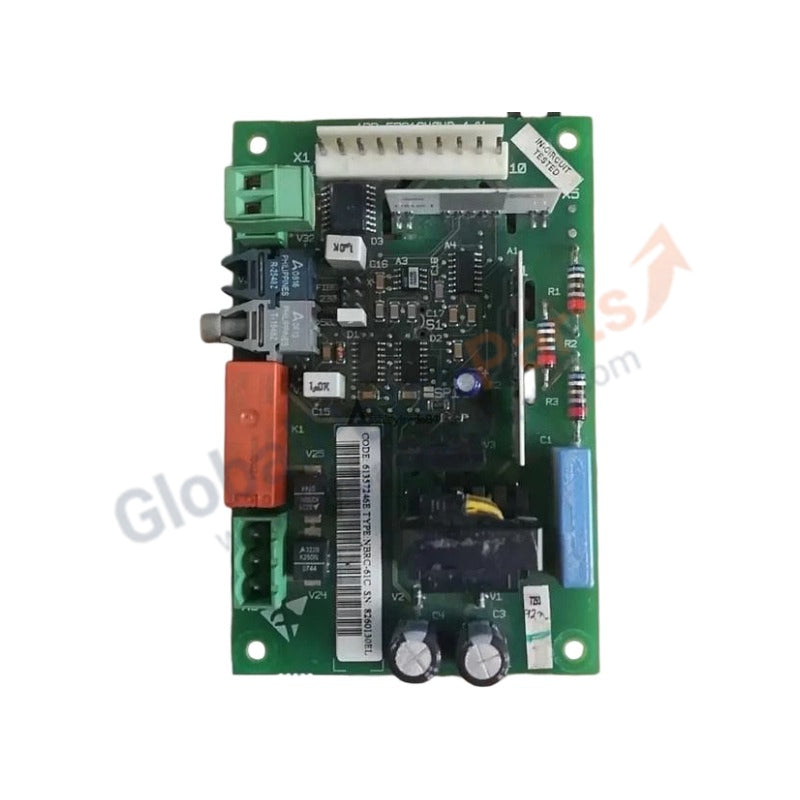

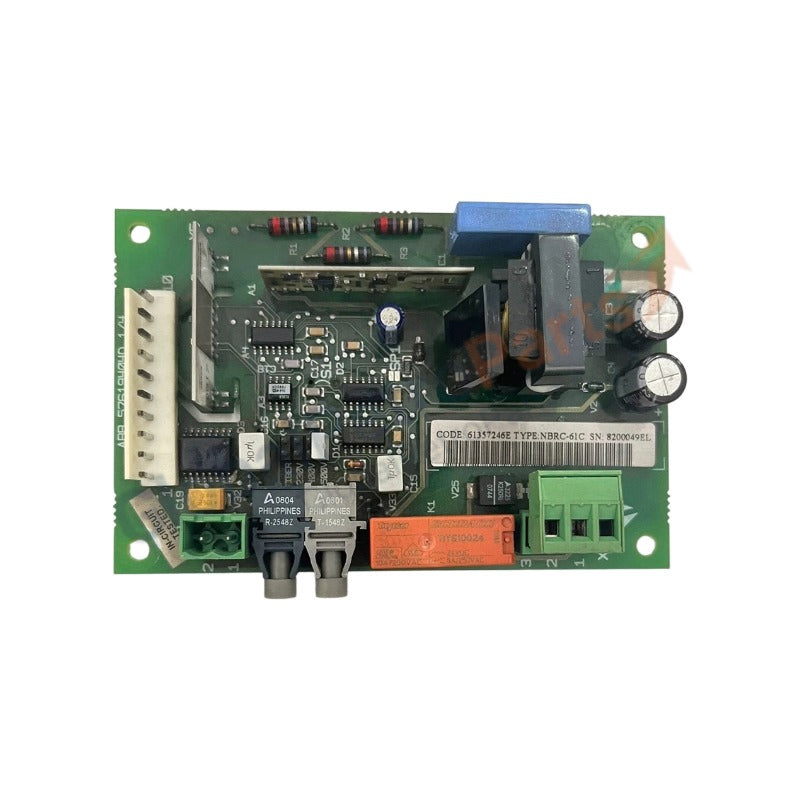

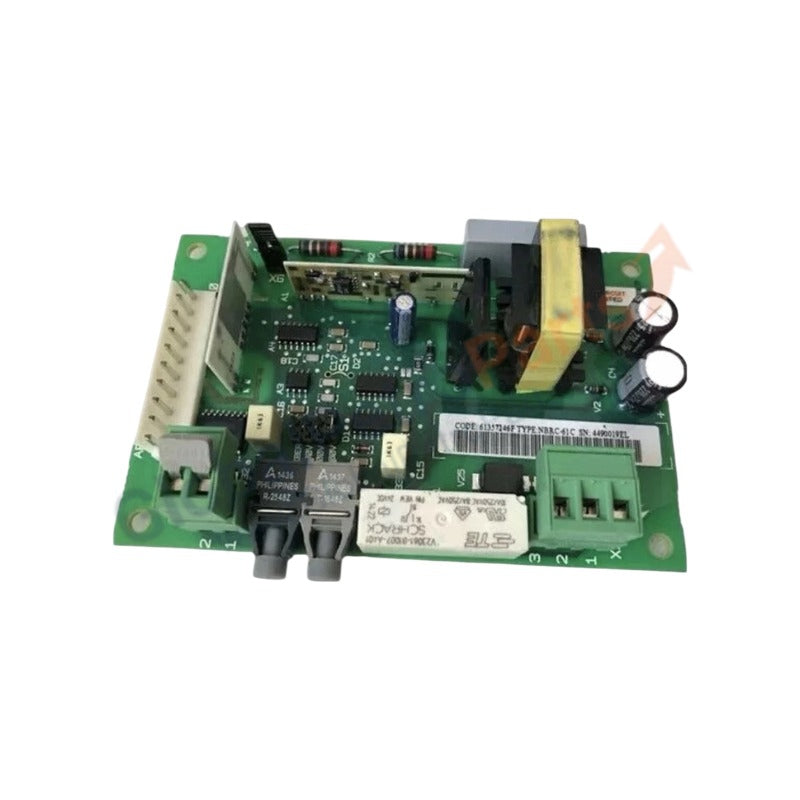

NBRC-61C Drive Control Boards ABB Drive Systems
Manufacturer: ABB
Product No.: NBRC-61C
Product Type: Drive Control Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months
Configured for microprocessing and gate drive control in ABB Drive Systems, the ABB NBRC-61C (NBRC-61C Drive Control Board) provides direct physical/electrical execution. It coordinates firing pulses for power semiconductors based on algorithmic feedback loops acquired from the drive backplane interface.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NBRC-61C |
| Brand | ABB |
| Origin | Finland |
| Weight | 0.85 kg |
| Dimensions | 230 mm x 180 mm x 35 mm |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | 15 W at 24 VDC |
| Processor Architecture | 16-bit Microcontroller |
| Communication Interface | High-speed parallel backplane bus |
| Status Indication | Onboard diagnostic LEDs |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The hardware architecture interfaces directly with the host system via an integrated backplane bus connection, establishing a deterministic pathway for real-time motor control loops. To maintain synchronization across parallel configurations, the unit enforces strict firmware flash compatibility constraints. The onboard EEPROM requires identical firmware revision matching across redundant or distributed control architectures to prevent synchronization faults or execution latencies within the industrial network.
Frequently Asked Questions
Q: Does the NBRC-61C module support hot-swapping during drive operation?
A: No. The board does not possess hot-swap capability. Power to the control hub must be disconnected entirely before extraction or insertion to protect the logic circuits from transient voltage spikes.
Q: What action is triggered if a firmware version mismatch occurs on the backplane?
A: The drive controller identifies code discrepancies via an initial boot checksum. A firmware mismatch stops execution and locks the module in a fault state until compatible firmware is flashed via the service interface.
Field Installation Guidelines
- Electrostatic Discharge Control: Technicians must utilize a grounded ESD wrist strap before handling the circuit assembly to prevent structural degradation of the semiconductors.
- Mechanical Alignment: Align the multi-pin backplane connector vertically with the slot guides. Insert firmly and torque the retention screws to 1.2 Nm to verify structural stability.
- Conduit and Shield Separation: Route all low-voltage control signals and communication wiring through dedicated conduits separate from high-voltage AC motor power phases to minimize electromagnetic interference.
