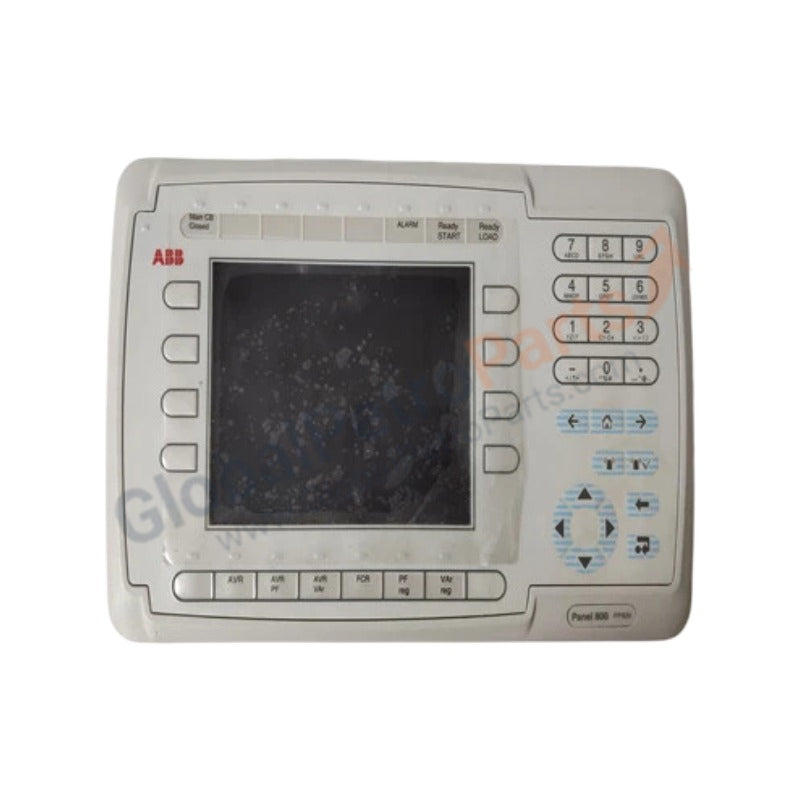

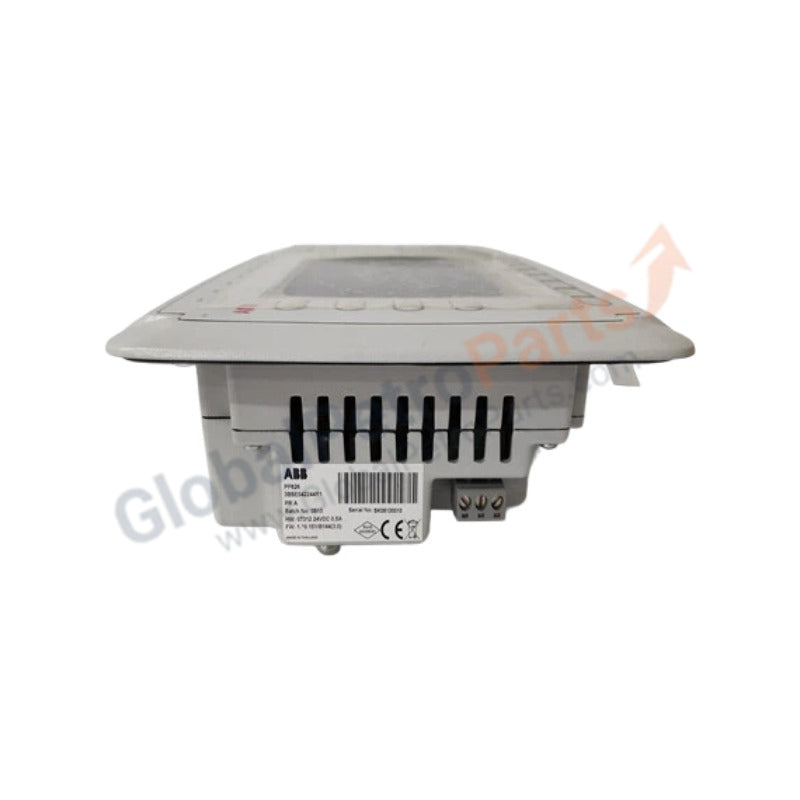

Operator Panels ABB Panel 800 PP826 3BSE042244R1

Configured for real-time process visualization and human-machine interface navigation in ABB Panel 800 architectures, the ABB PP826 3BSE042244R1 (PP826 Operator Panel) provides direct physical/electrical execution. The hardware component handles variable graphics translation and physical touch vector mapping to process data exchanges across local automation nodes.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The internal processor board runs dedicated software modules that map runtime registers directly onto active field controller variables. To support system layouts with high I/O density scaling profiles, the panel implements optimized polling threads over its built-in communications interfaces. The physical interface architecture maps control system diagnostics onto drivers that communicate natively with Profinet / EtherNet/IP deterministic networks, maintaining consistent refresh cycle intervals without generating communication buffer bottlenecks.

Frequently Asked Questions

Q: Can the PP826 3BSE042244R1 interface cables be manipulated while the unit is energized?

A: No. The incoming 24 VDC power connection must be completely isolated before installing or extracting any communication plugs or the power terminal block. Uncoupling energized serial or Ethernet links risks localized ground loop faults or electronic component breakdown.

Q: How does the unit react to a localized voltage drop below its operating specification?

A: The panel contains internal voltage monitoring circuitry. If the 24 VDC line drops beneath the minimum design baseline, the unit triggers a safe shutdown routine, terminates active communications to avoid corrupting remote controller memory, and blacks out the backlight array.

Field Installation Guidelines

• Electrostatic Grounding Procedures: Engineering technicians must wear a verified, grounded ESD wrist strap before handling the rear interfaces, memory slots, or termination blocks of the housing.
• Mechanical Cut-out and Gasket Seating: Insert the panel into the prepared enclosure cutout. Tighten all supplied mounting brackets evenly to a torque rating of 0.7 Nm to ensure uniform compression of the ambient sealing gasket.
• Cable Channel Allocation: Route communication and data paths through dedicated wire trays that maintain a minimum separation of 100 mm from high-voltage AC lines to prevent magnetic noise induction.
