PHCBRCPBA20000 ABB Power Distribution Boards ABB Bailey Infi 90

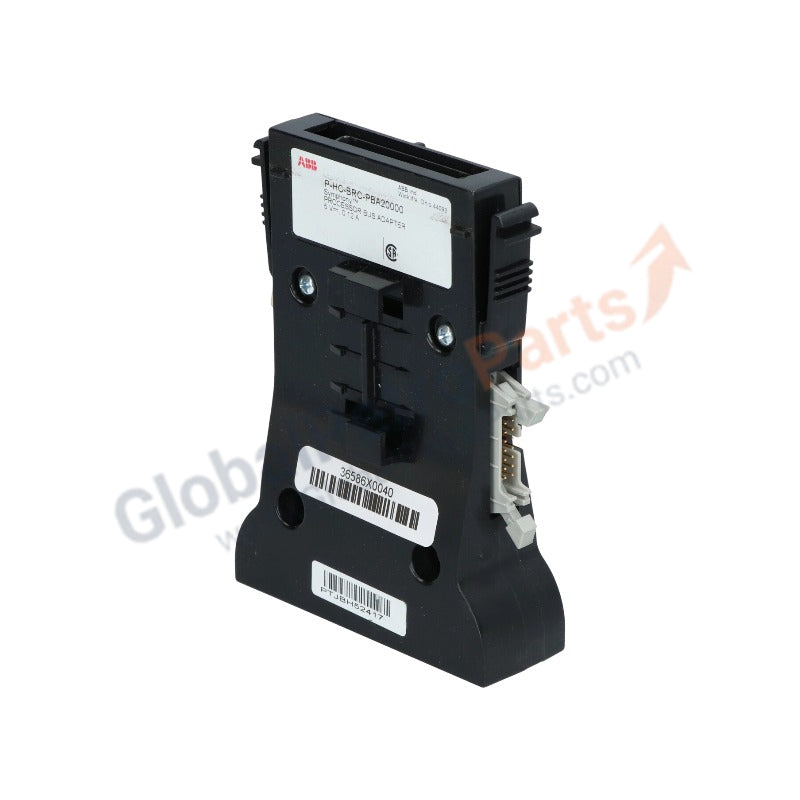

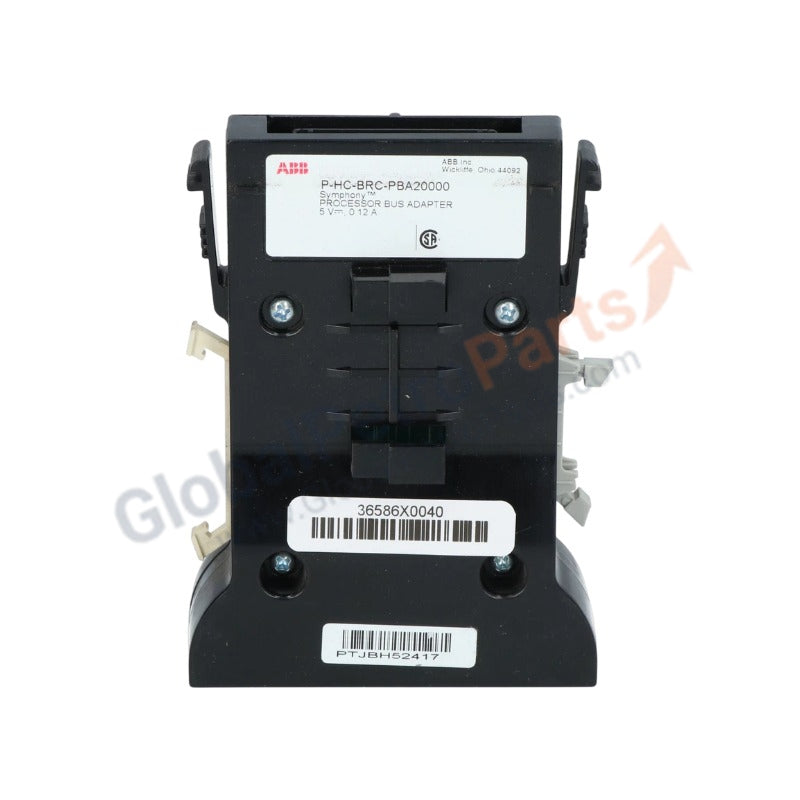

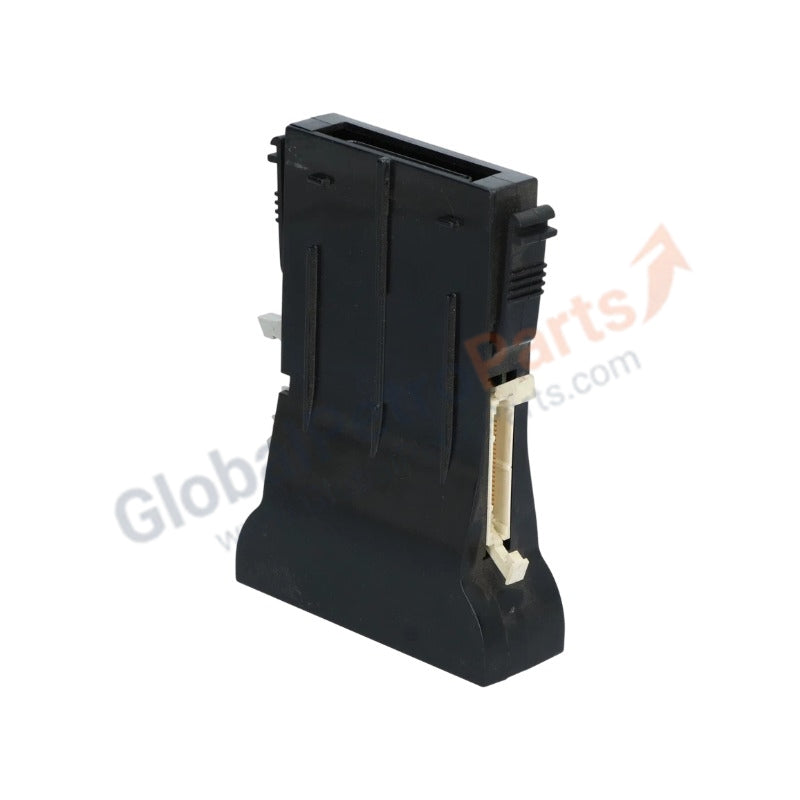

The ABB PHCBRCPBA20000, also cataloged as the PHCBRCPBA20000 Hood-Style PBD Assembly, operates as a dedicated hardware component for physical terminal routing and backplane power distribution within ABB Bailey Infi 90 and Symphony control systems.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The structural terminal board architecture facilitates direct point-to-point physical trace routing between electronic rack processing modules and external field terminations. To maintain stability during high I/O density scaling transitions across large multi-rack configurations, the printed circuit matrix contains isolated tracking paths to shield data signals from noise. When field parameters require transport to upper-tier infrastructure, the local register structures map directly to control networks aligned with Profinet / EtherNet/IP deterministic networks via the primary processor module bus coupler interface.

Frequently Asked Questions

Q: Does the PHCBRCPBA20000 termination board assembly require separate external auxiliary power lines?

A: No. The board functions as a completely passive electrical distribution and routing node. It derives baseline continuity paths from the physical backplane bus bar links and logic ribbons connected to the active processing blocks.

Q: Can the signal ribbon cables hooked into this card be disconnected while the system is under load?

A: No. Disconnecting active I/O ribbon cables while powered can trigger unexpected open-circuit loop faults or transient signal glitches on adjacent processing cards. Isolate logic circuits before manipulating terminal interfaces.

Field Installation Guidelines

• Electrostatic Dissipation Control: Installation personnel must utilize an approved ESD wrist strap bounded to the cabinet frame grounding stud before completing the alignment of the module board.
• Mechanical Alignment Constraints: Slide the hood structure precisely over the matching chassis mounting channels. Hand-tighten all retention bolts to verify exact ground seat continuity before torqueing screws to a limit of 1.2 Nm.
• Cable Shielding Topology: Route analog and high-speed digital communications lines via separated vertical channels, terminating individual wire shields at the master enclosure ground rail using standard low-impedance grounding clamps.
