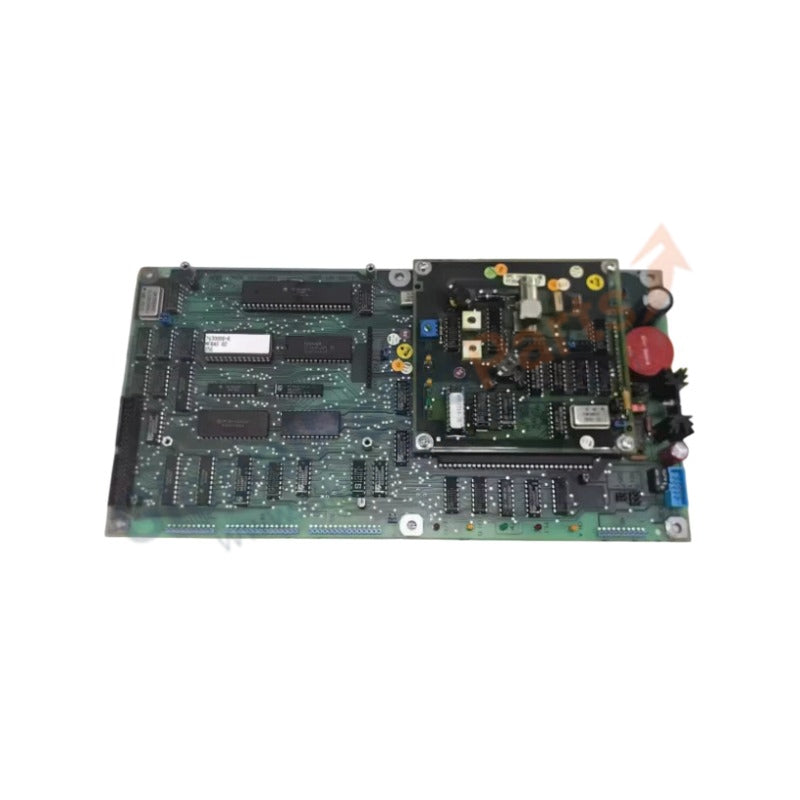

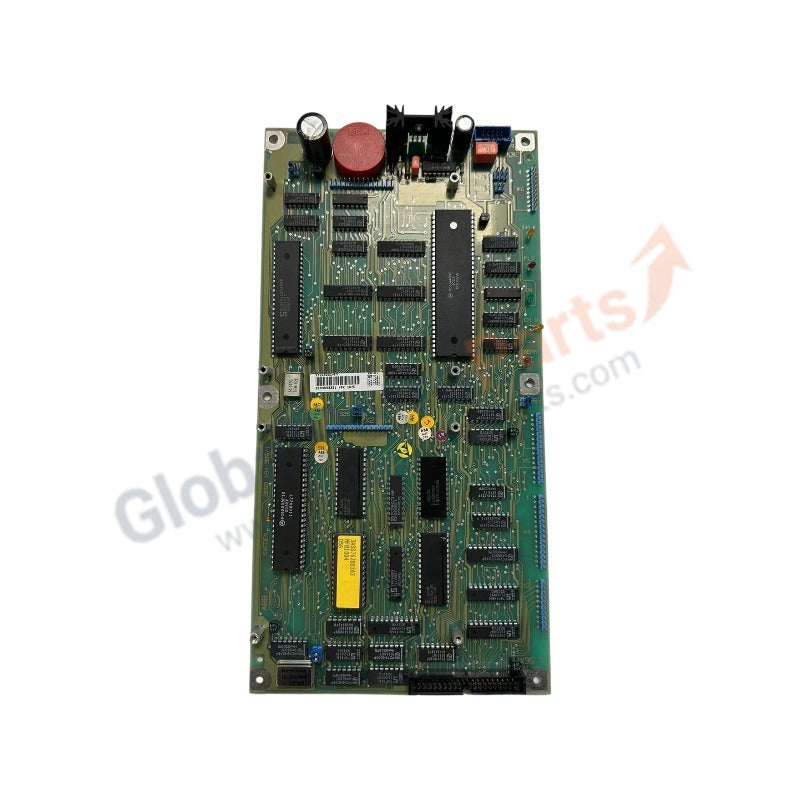

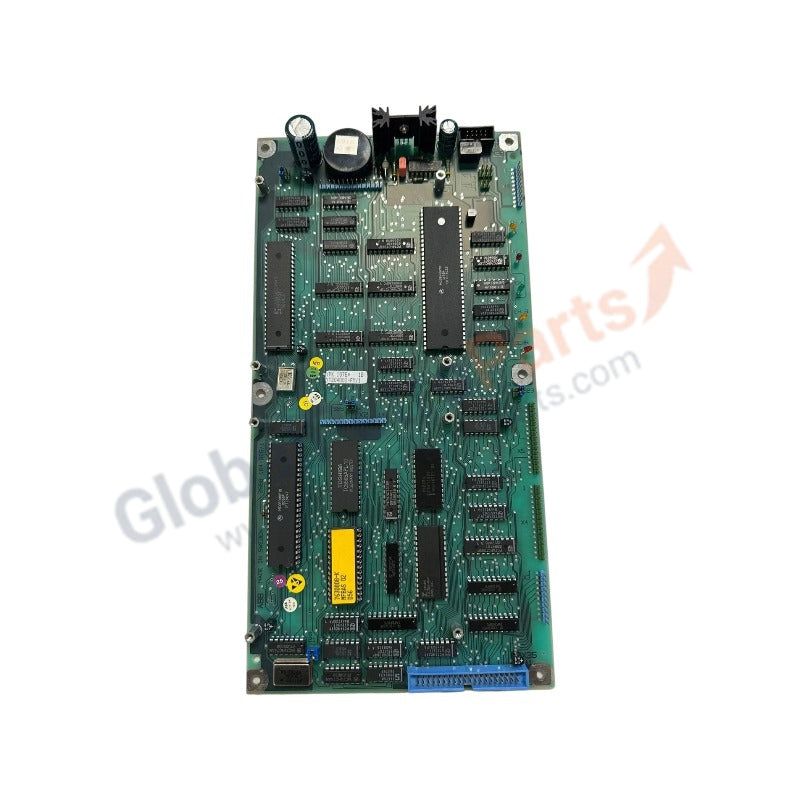

Configured for direct current regulation and internal rail distribution in ABB distributed control platforms, the ABB YPK110E YT204001-FH (YPK110E Power Supply Unit) provides direct physical/electrical execution. It transforms incoming auxiliary supply potentials into stabilized low-voltage outputs required to drive local backplane logic cards and electronic circuit pathways.

Hardware Specifications

I/O Density Scaling and Firmware Flash Compatibility

The hardware layout integrates a continuous monitoring circuit that references load conditions directly to the host supervisor interface over the chassis connection. It maintains strict firmware flash compatibility parameters within sub-rack assemblies to ensure that telemetry registers align perfectly with adjacent processing hardware. This architecture prevents initialization delays or logic mismatches during high I/O density scaling procedures, preserving exact scan-cycle synchronicity across expanded distribution blocks.

Frequently Asked Questions

Q: Is the YPK110E YT204001-FH module rated for hot-swap replacement routines?

A: No. Live insertion or extraction is prohibited. The primary supply loop must be completely isolated and de-energized prior to removing or seating the module to avoid arc hazards or destructive voltage transients across the backplane connectors.

Q: How does the power assembly respond to an external short-circuit on an output rail?

A: The module incorporates internal overcurrent trip mechanics. Upon detection of a dead short or severe load anomaly, the unit drops into a latching fault status, disabling the output phase until the physical fault is cleared and input power is cycled.

Field Installation Guidelines

• Electrostatic Control Protocols: Field engineers must maintain connection to a verified earth ground via an ESD wrist strap during extraction, handling, or mounting phases of the card body.
• Mechanical Seating Mechanics: Insert the unit perpendicularly into the chassis track guides. Press firmly until the rear multi-pin pin block seals completely into the backplane, then fasten the dual faceplate screws to 1.0 Nm.
• Conductor Separation Rules: Lay out high-current feeding lines through separate tracking lanes isolated from low-voltage analog or digital communication lines by a minimum of 100 mm to maintain signal integrity.
