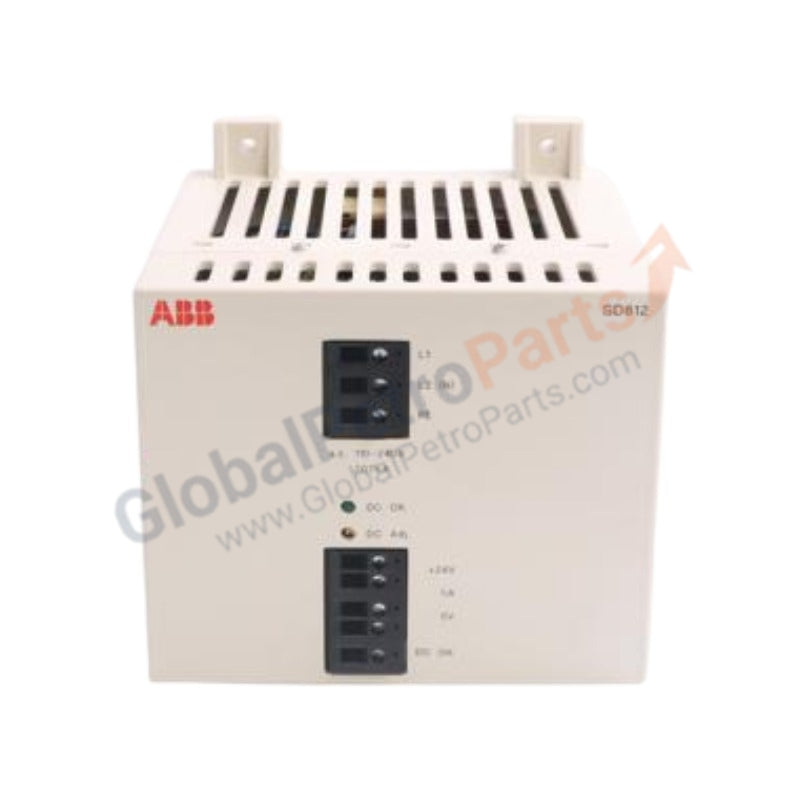

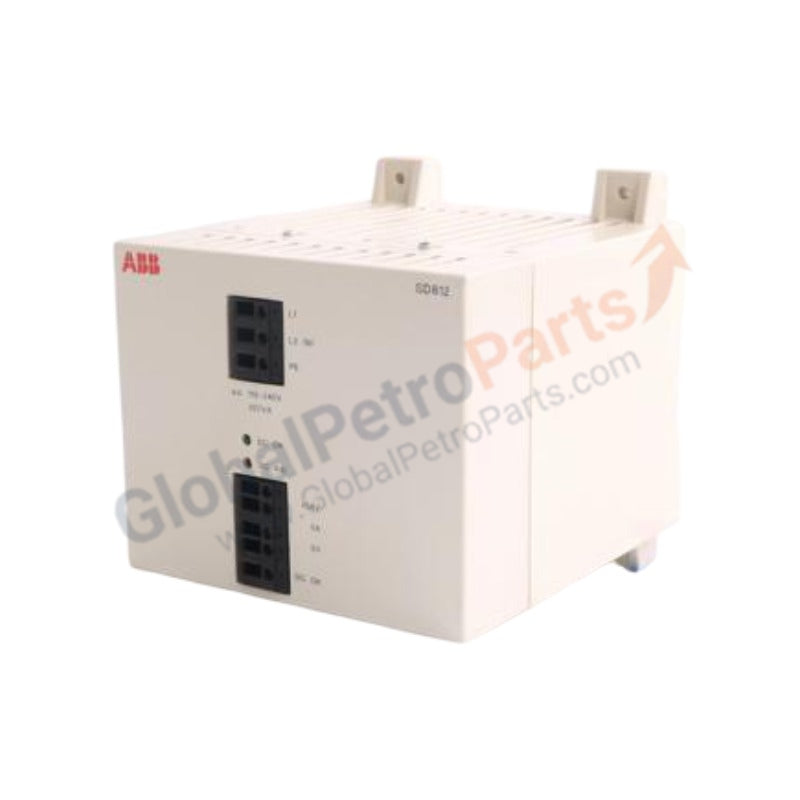

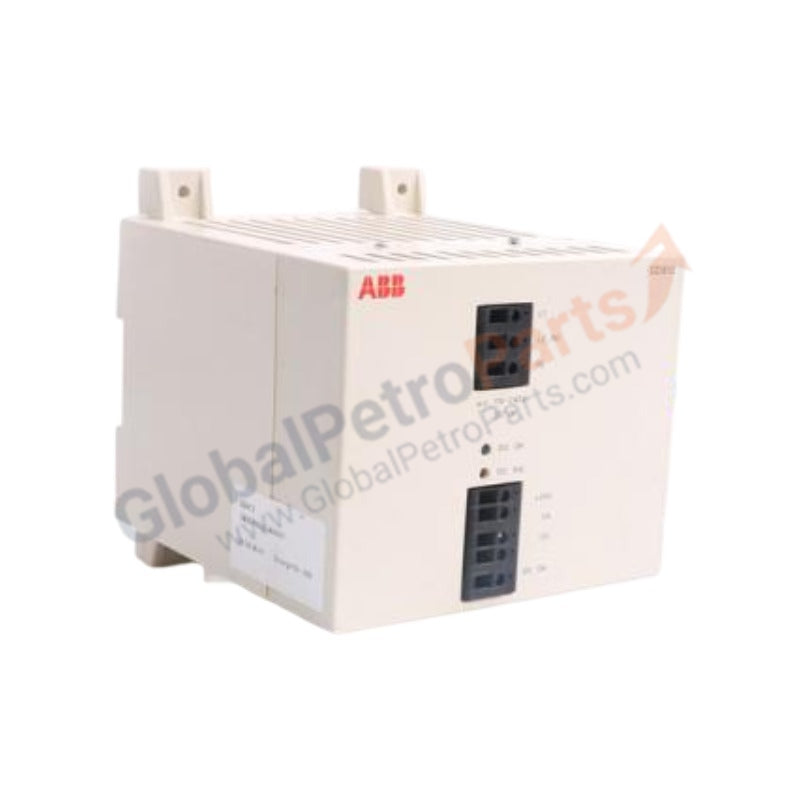

SD812 3BSC610023R0001 Power Supply Modules ABB 800xA System

The ABB SD812 3BSC610023R0001 serves as the primary SD812 Power Supply Module utilized to execute continuous direct current regulation and distribution tasks across ABB 800xA / S800 I/O platforms. It converts mainstream alternating or direct input voltages into stabilized low-voltage outputs required by local baseplate components.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The power assembly contains monitoring circuitry that interfaces directly with the bus carrier backplane structure, outputting hardware status metrics directly to the host control unit. It aligns sub-system diagnostic signaling with upper-level architectures, interfacing with Profinet / EtherNet/IP deterministic networks via an intermediate network adapter module. This tight polling synchronization prevents power diagnostic cycle delays from impeding high I/O density scaling options across expanded module clusters.

Frequently Asked Questions

Q: Does the SD812 3BSC610023R0001 accommodate parallel setups for redundancy?

A: Yes. The hardware includes integrated output diodes that allow connection to parallel power busses for 1+1 or N+1 voting configurations. This layout supports active module replacement without interrupting voltage feed continuity to adjacent devices.

Q: What protective measures are integrated to manage internal over-temperature events?

A: The card contains internal thermal links. When operating temperatures exceed continuous maximum design bounds, the module decreases output limits safely or isolates the power stage until conditions fall within standard thresholds.

Field Installation Guidelines

• Electrostatic Grounding Protocols: Installation engineers must mount a grounded ESD wrist strap before manipulating configuration links or terminals on the outer block casing.
• DIN-Rail Assembly Specifications: Snap the module firmly into place onto standard 35 mm symmetric DIN-rails, tightening physical retention elements to avoid vibration-induced micro-interruptions over internal connection contacts.
• Cable Separation Architecture: Separate input bulk supply line routing configurations from critical analog signaling networks by a minimum of 100 mm to protect low-voltage data lanes from induced electrical distortion.
