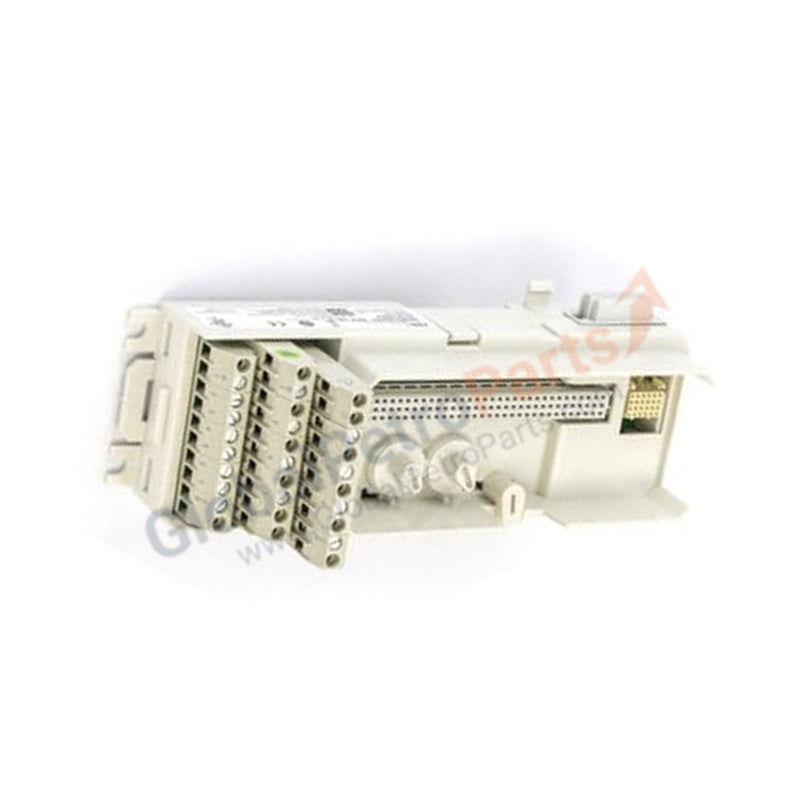

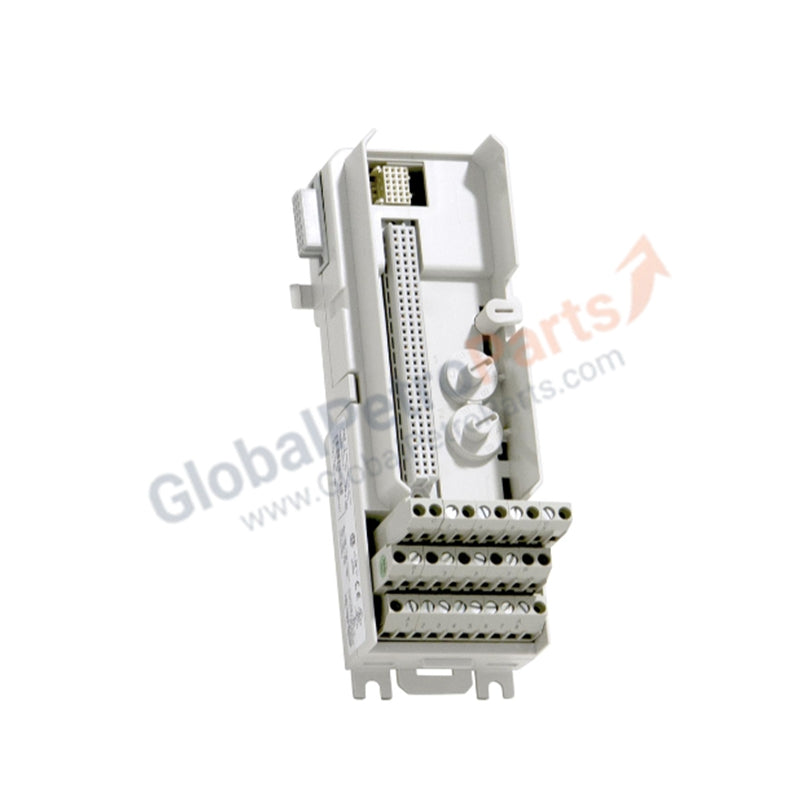

TU811V1 3BSE013231R1 S800 I/O Compact Module Termination Unit | ABB

Product Overview

The ABB TU811V1 (3BSE013231R1) serves as the mechanical and electrical interface between field wiring and S800 I/O modules. This compact Module Termination Unit (MTU) supports up to 8 channels and handles voltages up to 250 V, making it essential for high-voltage digital I/O applications. It facilitates organized cable management and provides the necessary backplane connectivity for specific digital modules. We guarantee this unit is 100% Brand New and Original, ensuring high dielectric integrity and field longevity for your automation system.

Technical Specifications

The TU811V1 provides a robust termination platform with the following technical parameters:

Engineering Advantages

• High-Voltage Signal Handling: The TU811V1 accommodates signals up to 250 V with a 3 A current rating per channel. This capability allows the integration of high-power digital inputs and relay outputs directly into the S800 station without requiring external interposing relays for standard mains-level voltages.

• Flexible Mounting Orientations: This MTU supports both horizontal and vertical mounting. While horizontal mounting allows operation up to 55°C (131°F), vertical mounting optimizes airflow in narrow cabinets up to 40°C (104°F), giving engineers the freedom to design enclosures based on specific thermal and spatial constraints.

• Simplified Field Wiring: The integrated terminal block accepts a wide range of wire gauges, from fine 24 AWG stranded wire to thick 4 mm² solid conductors. This versatility eliminates the need for specialized ferrules or adapters during onsite installation.

• Superior Insulation Safety: With a dielectric test voltage of 2000 V a.c., the TU811V1 provides a high safety margin against transient voltage spikes. This robust insulation protects sensitive low-voltage ModuleBus electronics from field-side surges.

• Compact Footprint: The "Compact" design philosophy minimizes the width required on the DIN rail. By consolidating 8 high-voltage channels into a small mechanical frame, the TU811V1 reduces the overall dimensions of the I/O assembly.

FAQs

• Which specific S800 modules work with the TU811V1? The TU811V1 specifically pairs with the DI820, DI821 (Digital Input) and DO820, DO821 (Digital Output) modules. It does not support redundant I/O configurations; for redundancy, you must select a different MTU series.

• What mounting direction provides the best thermal performance? Horizontal mounting provides the highest temperature tolerance (up to 55°C). If you must mount the unit vertically due to cabinet constraints, ensure the ambient temperature does not exceed 40°C to prevent derating or overheating of the attached I/O module.

• Can I use the TU811V1 for analog signals? No. This MTU is designed and rated for digital signals, particularly those involving 120/230 V a.c. or d.c. signals. Analog modules typically require MTUs with different shielding and grounding characteristics.

• How do I ensure a secure electrical connection? Strip the field wires to exactly 7 mm and apply the recommended torque of 0.5 - 0.6 Nm to the terminal screws. Following these specifications prevents loose connections and potential arcing in high-voltage circuits.
