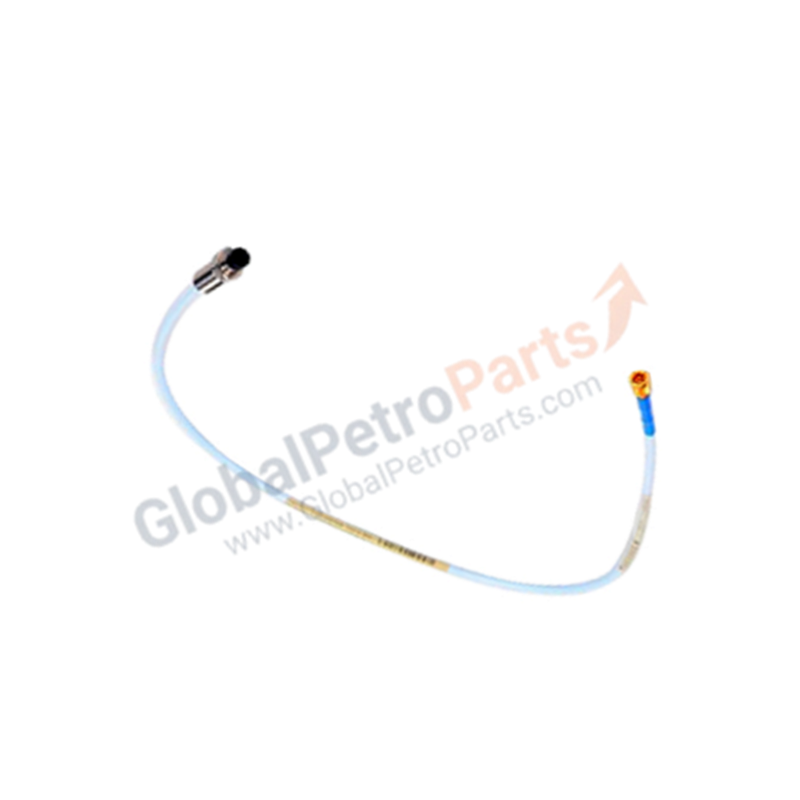

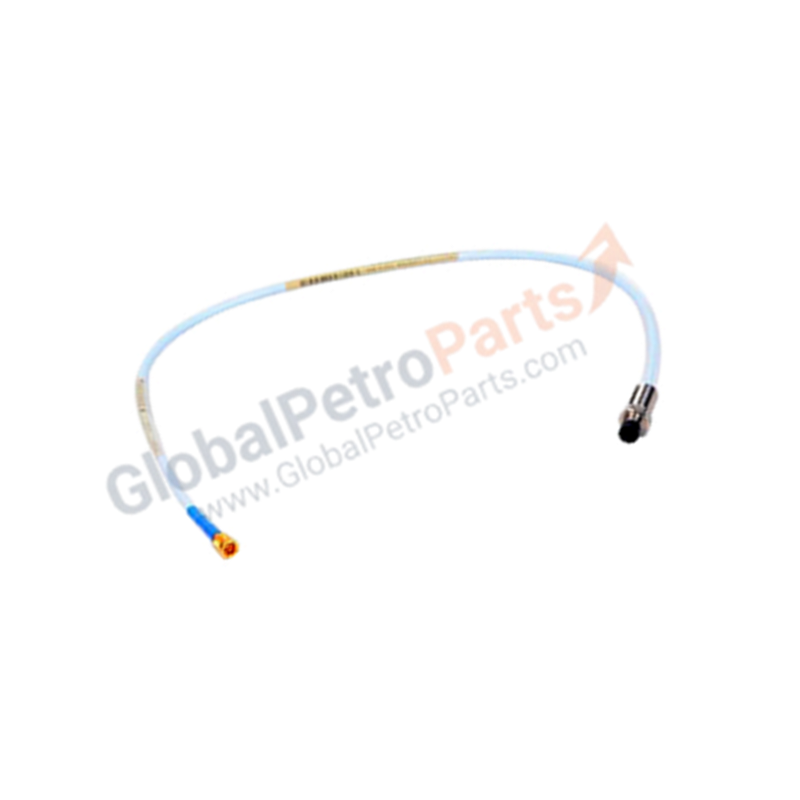

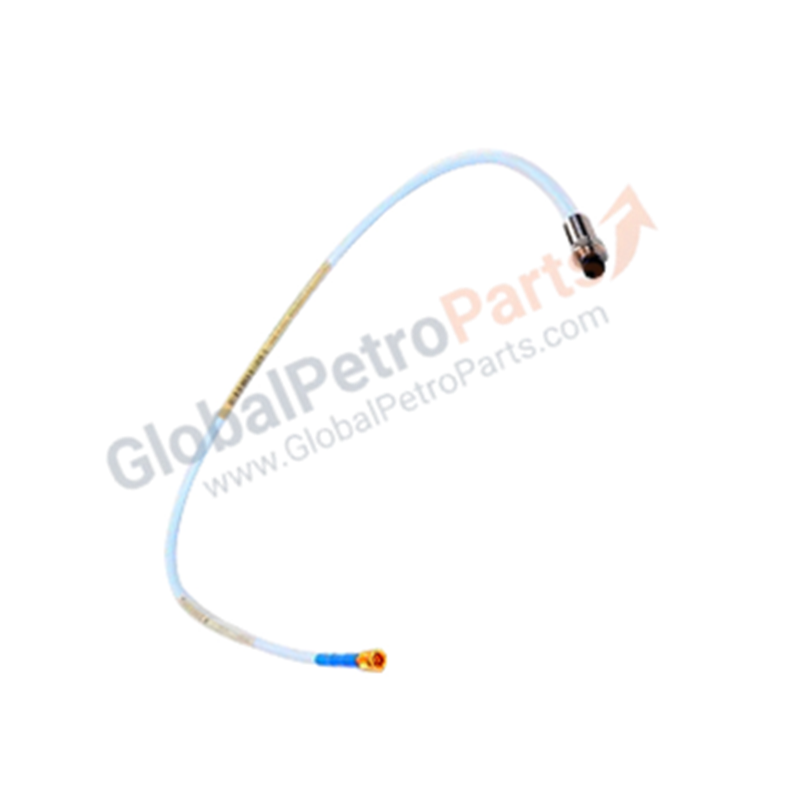

330901-00-90-05-02-00 | Bently Nevada | 3300 NSv Proximity Probes

Configured for non-contacting displacement measurement in industrial monitoring systems, the Bently Nevada 330901-00-90-05-02-00 (330901 Proximity Probe) provides direct physical signal transduction via eddy-current interaction.

Suffix Breakdown & Model Matrix

• 330901: Base Model (3300 NSv Proximity Probe)
• -00: Unthreaded Length (0.0 in)
• -90: Overall Case Length (9.0 in)
• -05: Total Length (0.5 meter)
• -02: Connector and Cable Type (Miniature coaxial ClickLoc, standard cable)
• -00: Agency Approval (Not required)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system operates on eddy-current probe scaling principles, where the proximitor driver generates a high-frequency carrier signal. Changes in the air gap between the probe tip and the observed metallic target cause variations in the eddy-current loading, which the system converts into a linear voltage output. For accurate rotor dynamics analysis, users must perform a gap voltage validation during the initial setup. The system is designed to target a -10 VDC center-gap reading; deviations from this target can shift the operating point out of the linear range, potentially inducing clipping or distortion in the vibration orbit data. Proper signal integrity requires strict adherence to impedance matching at all connection points to prevent cross-talk suppression issues across multi-channel monitoring modules.

Frequently Asked Questions

Q: Can the 330901-00-90-05-02-00 be used in place of a standard 3300 XL probe?

A: No. The 3300 NSv (Near-field) series is specifically tuned for small-target applications. Interchanging probe types without matching the proximitor driver and recalibrating the signal chain will result in incorrect displacement values and loss of linearity.

Q: How is the ClickLoc connector maintained to prevent signal drift?

A: The ClickLoc connector is designed for a secure mechanical lock that maintains a constant 75 ohm impedance. Ensure the connector is free of oil, moisture, or metallic debris. Avoid excessive mechanical stress on the connection point to prevent intermittent signal loss which can be interpreted by the monitor as a transducer fault.

Field Installation Guidelines

• Target Material: Ensure the target surface (shaft or rotor) is clean and free of metallurgical irregularities that could influence eddy-current formation.
• Gap Adjustment: Utilize a high-impedance digital multimeter to measure the gap voltage. Adjust the probe position until the reading is -10 VDC at the specified nominal gap to ensure the system is operating within its linear measurement range.
• Cable Routing: Route the 75 ohm coaxial cable through dedicated, grounded conduit. Keep the cable away from high-voltage AC lines to prevent induced noise.
• Mounting: Ensure the probe is mounted in a bracket with sufficient stiffness to prevent mechanical resonance, which can be conflated with shaft vibration.
