330902-00-40-10-02-00 3300 XL NSv Proximity Sensor | Bently Nevada

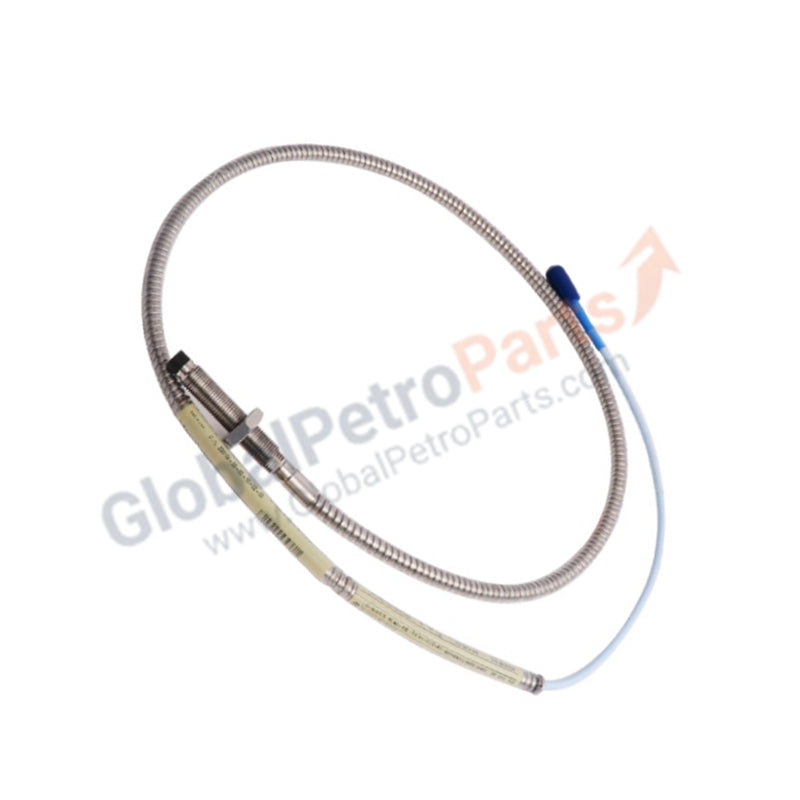

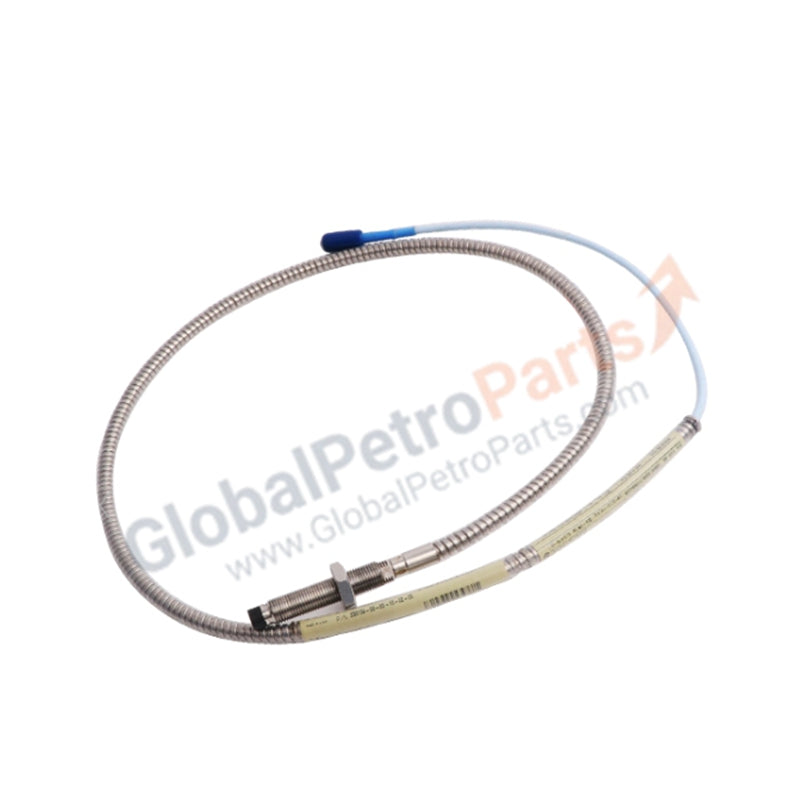

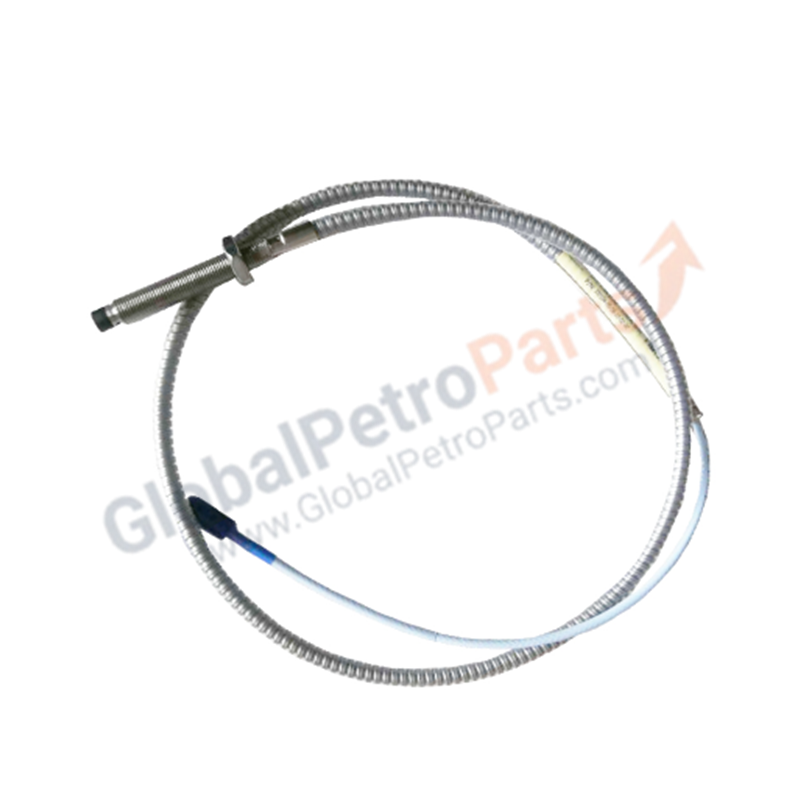

The Bently Nevada 330902-00-40-10-02-00, also cataloged as the 330902 3300 XL NSv Proximity Sensor, operates as a dedicated hardware component for non-contacting displacement measurement within machine protection and condition monitoring systems.

Suffix Breakdown & Model Matrix

• 330902: Base Model (3300 XL NSv Proximity Sensor)
• -00: Unthreaded Length (0.0 in)
• -40: Overall Case Length (4.0 in)
• -10: Total Length (1.0 meter)
• -02: Connector and Cable Type (Miniature coaxial ClickLoc, standard cable)
• -00: Agency Approval (Not required)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 XL NSv system utilizes precise eddy-current probe scaling to convert target distance into linear voltage output. The probe tip, constructed of polyphenylene sulfide, functions as an integral component of the oscillating circuit when energized by the Proximitor sensor. During installation, operators must perform gap voltage validation, targeting a nominal -10 VDC center-gap reading to ensure the linear range is centered within the expected shaft displacement. Maintaining the integrity of the 75 ohm coaxial cable path is necessary for accurate rotor dynamics data acquisition, as signal degradation or impedance mismatches may manifest as false runout or erratic orbit plots in the monitoring software. Cross-talk suppression should be managed by adhering to cable separation standards in multi-channel installations.

Frequently Asked Questions

Q: Can the 330902-00-40-10-02-00 be used in applications requiring high-pressure sealing?

A: The probe includes a Viton O-ring for differential pressure sealing between the tip and the case. However, probes are not pressure-tested prior to shipment. Contact the manufacturer if specific pressure seal certification is required for the application.

Q: What precautions should be taken with the ClickLoc connector?

A: The ClickLoc connector is designed to maintain constant 75 ohm impedance. Ensure the connection is fully seated and free of contaminants to prevent signal attenuation or noise. Do not use excessive force during coupling, as this can damage the connector geometry and degrade signal fidelity.

Field Installation Guidelines

• Mounting Stability: Secure the probe in a rigid bracket. Excessive movement of the bracket itself will be measured as mechanical displacement, leading to inaccurate monitoring data.
• Grounding and Shielding: Ensure the coaxial shield is continuous back to the monitor or proximitor housing. Avoid pinching or crushing the 75 ohm FEP-insulated cable during routing, as deformation alters the characteristic impedance.
• Gap Adjustment: Prior to locking the probe in position, rotate the housing to adjust the gap. Verify the output is at the specified -10 VDC nominal center point using a high-impedance digital multimeter.
• Cable Routing: Keep coaxial cables away from high-voltage AC lines to prevent induced interference. Adhere to the minimum bend radius specifications to prevent structural damage to the cable shielding.
