330905-00-07-10-02-05 | Bently Nevada | 3300 NSv Proximity Probe

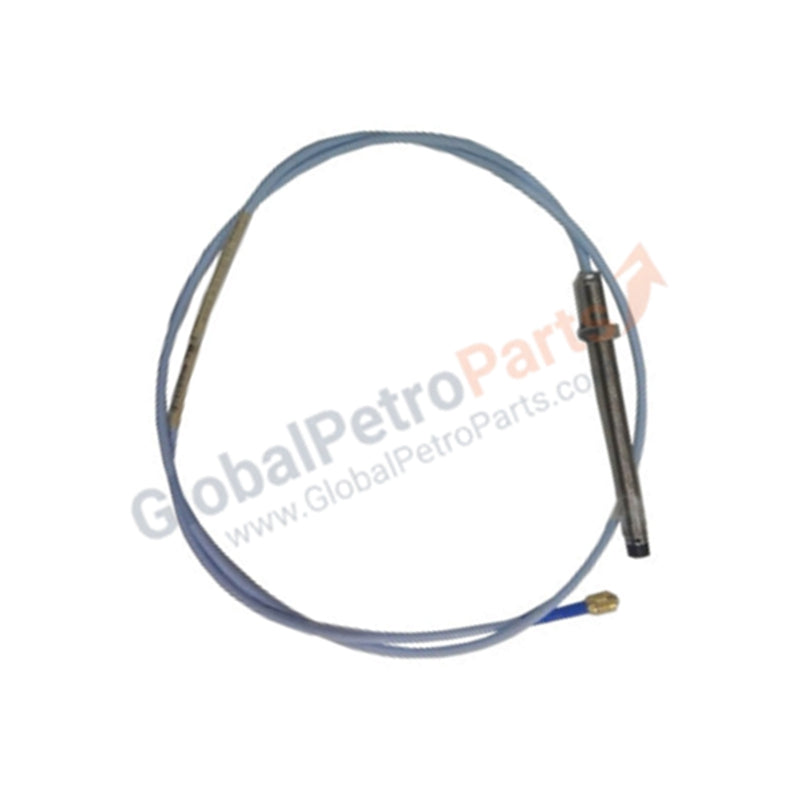

Configured for precision displacement measurement in restricted installation envelopes, the Bently Nevada 330905-00-07-10-02-05 (330905 Proximity Probe) provides direct physical signal execution via eddy-current induction across machinery monitoring platforms.

Suffix Breakdown & Model Matrix

• 330905: Base Model (3300 NSv Proximity Probe)
• -00: Unthreaded Length (0 mm)
• -07: Overall Case Length (70 mm)
• -10: Total Length (1.0 meter)
• -02: Connector and Cable Type (Miniature coaxial ClickLoc connector with protector, FluidLoc cable)
• -05: Agency Approval (Multiple approvals)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv system utilizes eddy-current probe scaling to translate target distance into a proportional voltage signal. Because the NSv series is designed for near-field applications, maintaining the correct gap voltage validation (-10 VDC nominal center-gap target) is necessary to ensure the linearity of the transducer output. Variations in the rotor material or surface conductivity can introduce measurement errors, requiring calibration to the specific target. To prevent signal degradation and maintain rotor dynamics accuracy, cross-talk suppression must be observed; ensure the 75 ohm coaxial cable path is free from high-frequency interference and that the shield is properly terminated at the monitoring interface.

Frequently Asked Questions

Q: Can the 330905-00-07-10-02-05 be used in high-pressure gas applications?

A: The probe utilizes a FluidLoc cable, which is designed to inhibit fluid migration through the cable jacket. Ensure that the probe mounting is correctly sealed to the compressor casing to maintain pressure boundary integrity.

Q: Is the ClickLoc connector compatible with standard 3300 XL extension cables?

A: The 3300 NSv system uses specific impedance-matched components. Use only compatible 3300 NSv system cables to maintain the 75 ohm characteristic impedance. Deviating from the specified cable type will introduce impedance mismatches, resulting in signal reflection and inaccurate displacement data.

Field Installation Guidelines

• Mounting Stability: The M10x1 threaded body must be secured with locking nuts to prevent loosening due to machine vibration. Verify that the mounting bracket does not exhibit resonant frequencies near the operating speed of the observed shaft.
• Grounding and Shielding: The coaxial cable shield must be continuous and properly grounded at the Proximitor sensor housing. Do not allow the cable shield to contact the machine casing at any point other than the designated grounding terminal to avoid ground loop formation.
• Gap Adjustment: Utilize a high-impedance digital multimeter to monitor the Proximitor output. Rotate the probe to adjust the air gap until the reading hits -10 VDC at the nominal center-gap position before final locking.
• Cable Routing: Keep the coaxial lead away from AC power wiring and high-frequency communication cables to minimize EMI injection. Ensure the cable bend radius exceeds the minimum manufacturer requirements to prevent structural deformation of the inner conductor.
