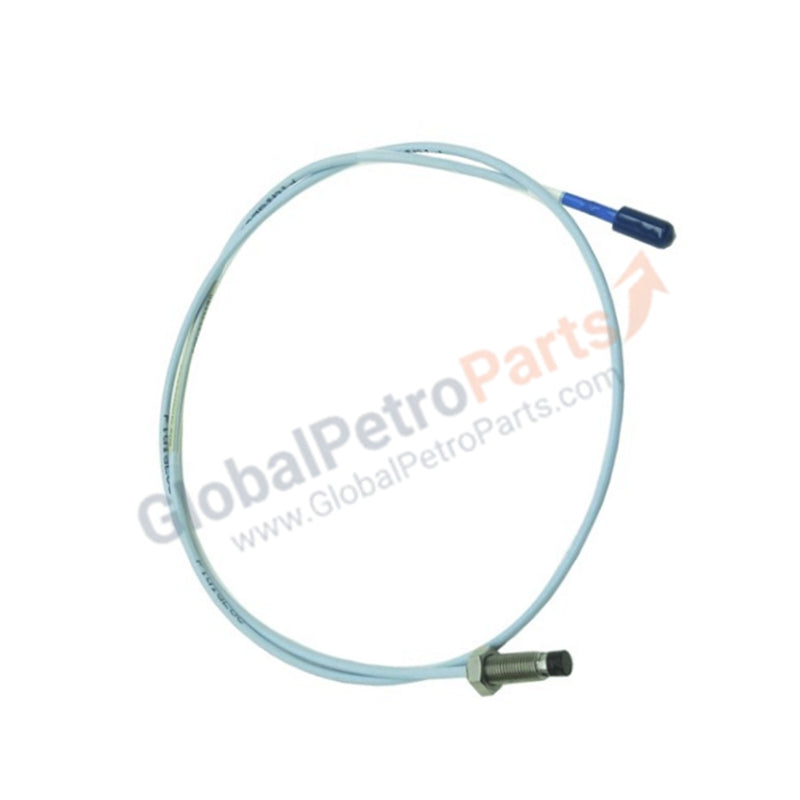

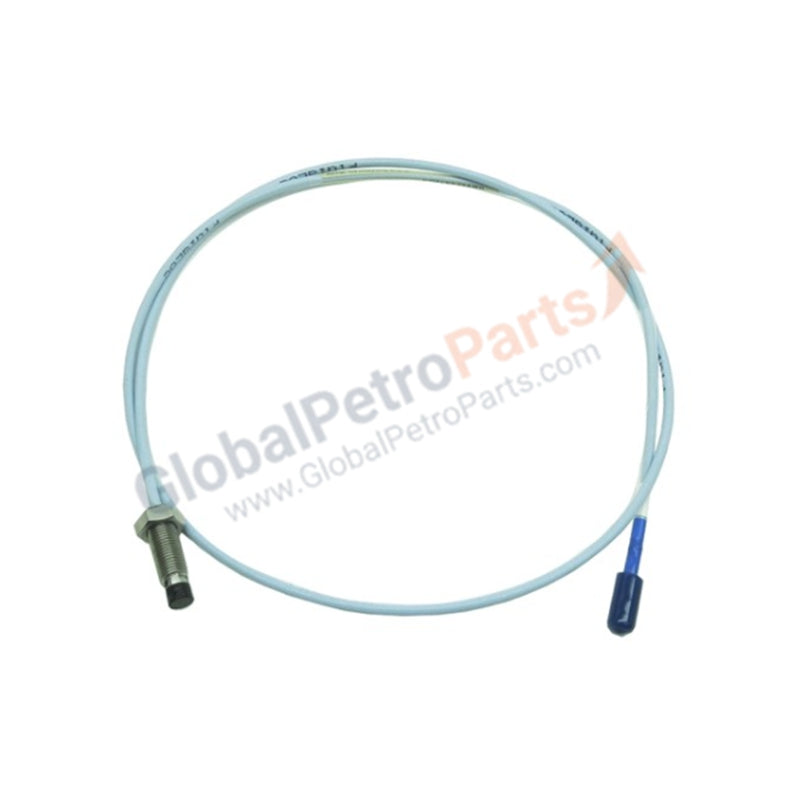

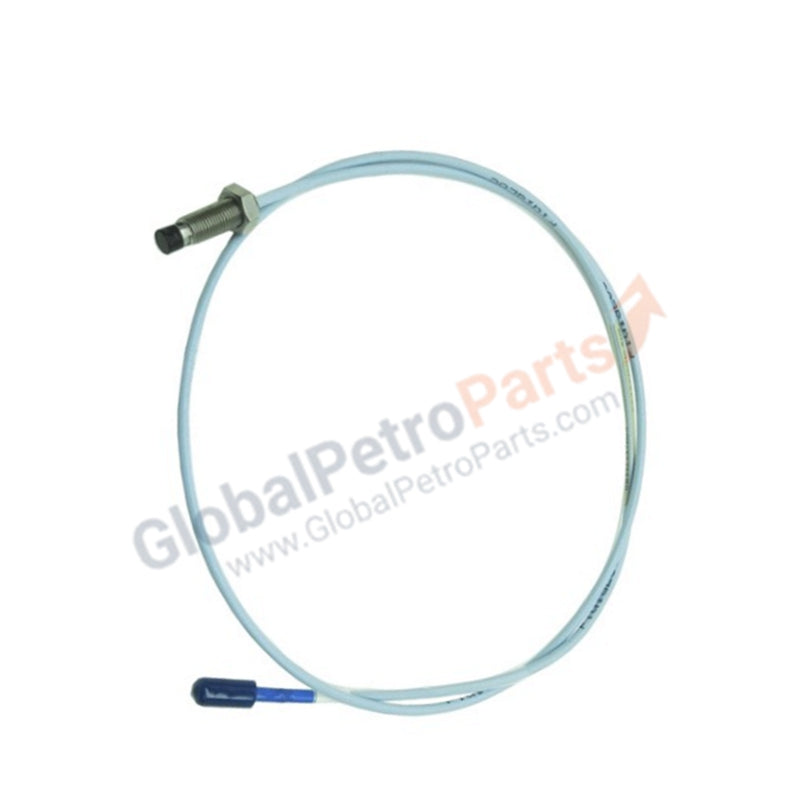

Bently Nevada 330903-00-06-10-02-05 3300 XL NSv Proximity Transducer System

The Bently Nevada 330903-00-06-10-02-05, also cataloged as the 330903 Proximity Transducer System, operates as a dedicated hardware component for non-contacting shaft displacement measurement within machinery protection and condition monitoring platforms.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 XL NSv system utilizes eddy-current probe scaling to translate radial shaft movement into linear voltage signals. Effective rotor dynamics monitoring relies on the Proximitor sensor output of 7.87 V/mm. During the commissioning process, technicians must perform a gap voltage validation against the standard -10 VDC target to ensure the probe tip operates within the linear portion of its electromagnetic range. Signal integrity is maintained via the 3300 XL series architecture, which provides enhanced RFI/EMI immunity. To minimize cross-talk suppression interference in high-density installations, coaxial cable shielding must be consistently bonded to the system common at the Proximitor interface.

Frequently Asked Questions

Q: What is the requirement for the Proximitor sensor gap voltage during installation?

A: The system should be adjusted until the output voltage reaches the -10 VDC nominal center-gap target. This ensures the linear measurement range of 1.5 mm is fully utilized without saturation or clipping of the vibration waveform.

Q: Are the SpringLoc terminal strips compatible with various wire gauges?

A: The SpringLoc terminal strips are designed for standardized industrial wire sizes. Ensure that conductors are properly stripped to the manufacturer's specified length to guarantee a robust mechanical connection and consistent electrical contact resistance.

Field Installation Guidelines

• Probe Mounting: Ensure the probe is mounted in a rigid, non-resonant bracket. Any mechanical motion of the bracket will be added to the shaft displacement signal, resulting in erroneous vibration data.
• Shielding and Grounding: Maintain shield continuity throughout the entire signal path. The coaxial cable shield must be properly grounded to prevent ground loops and external electromagnetic noise injection.
• Cable Routing: Adhere to the minimum bend radius of the coaxial extension cables to prevent damage to the internal geometry, which would alter the characteristic impedance. Route cables through dedicated conduit, separated from high-power AC lines.
• Environmental Sealing: Given the IP67 rating, ensure all connections are properly sealed if the installation is subject to moisture or wash-down conditions. Periodically inspect the probe tip for debris buildup, which can affect the eddy-current field.
